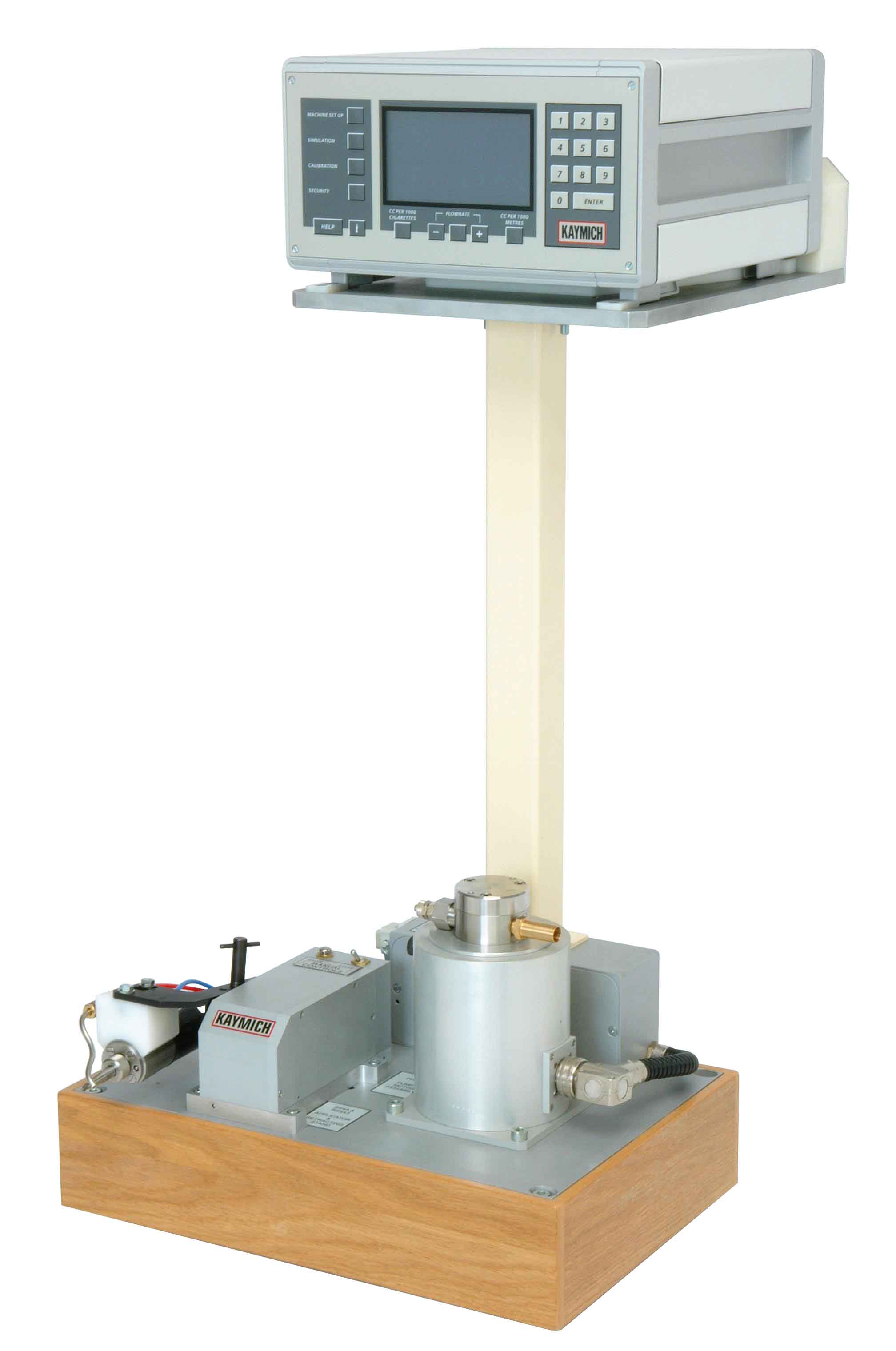

CSS1000 Cigarette Side Seam Adhesive Application - Pump Fed.


CSS1000 Cigarette Side Seam - Pump


The application of aqueous dispersion adhesive (PVA) fed by a pump, onto the side seam of a cigarette rod on a cigarette making machine.


Designed to apply adhesive to the side seam of the cigarette paper on a low or high speed making machine.

Key Features

  • Pump application designed for speeds over 8000cpm.
  • Incorporate the Kaymich side seam applicator with carbide coated nozzle tip for long life.
  • Automatic retracting stand for applicator mount. Fine adjustment of the applicator to paper position.
  • Metered adhesive application relative to machine speed.
  • Integral shorts blower removes tobacco shorts from the seam of the cigarette rod.
  • Manual over-ride for easy flow checks and setting.
  • Choice of nozzle designs depending upon host machine and lap width required.
  • Suitable for high and low speed applications.


Pump Fed Side Seam Adhesive Application System



Can the nozzle be replaced as a single part?
No. The needle and nozzle are machined as a matched pair to ensure the integrity of the seal.

Are the nozzles available with different diameter outlet?
Yes. 0.8mm, 1.0mm, 1.5mm and 2.0mm as standard, other sizes on request

How can we determine the correct replacement needle and nozzle?
The simplest way is to provide Kaymich with the applicator serial number located in the keyway. Otherwise confirmation of the nozzle diameter and host making machine is required.



How do we adjust the amount of adhesive applied to the cigarette rod?
The amount of adhesive applied can be adjusted in the controller by inputting a value in units of cc/1000cigs or cc/1000m.

Is the application proportional to machine speed?
Yes, an optical encoder is fitted to the machine that gives 300 pulses per cigarette.

What types of glue can be used?
A wide range of PVA and Starch based adhesives.

Does the system apply more adhesive when the rod maker is accelerating to full speed?
Yes, an over feed function within the controller allows the user to specify exactly how much extra glue is required. This amount is also proportional to machine speed.

Does the system need to be calibrated?
Only when a different adhesive is used. The process takes less than 5 minutes to complete.

What making machine speed can the system handle?
The latest software can process machine speeds of up to 20,000 cpm.


  • Pump option maximum speed 20,000 cpm.
  • Minimum adhesive viscosity for pump option 150 centipoise.
  • Maximum adhesive viscosity for pump option 12000 centipoise.
  • Not to be used with lubricated air supplies.

Technical Specification

Suitable for fitment to the following machines:
Decouflè: LOF, LOG, LOGA, 3D.
Hauni: All of the versions of the Protos up to the Protos 1000
Molins: All Molins Machines.
All systems are designed specifically for the host machine.
To retrofit the Positive Pump Feed System to an existing gravity fed system please contact Kaymich.
For all other machines please contact Kaymich.


Services Required:
Dry, filtered, non lubricated compressed air, 60 psi to 100 psi/4 to 7 bar. Air inlet 6.00 mm.
Electrical voltage – 110/240Vac
Electrical power – 125 watts.
No lubrication required.


Performance Characteristics:
Speed – +20,000 cpm single track.
Adhesive dosage: maximum 4.99 cc/1000 cigarettes but typically in the range 1.0 to 1.5 cc/1000 cigarettes.
Tank capacity – 5 litres standard.
15 litres can be supplied on request.


Adhesive Recommendations:
Whilst our products are designed to work with a wide range of adhesives performance will optimised by selection of the most suitable grade to match your process parameters. Please contact us if you require any assistance in identifying a solution for your requirements.

Type – Synthetic resin emulsion.
Adhesive viscosity – 150 to 12,000 centipoise.
A heated applicator manifold is available if running natural liquid starch.
